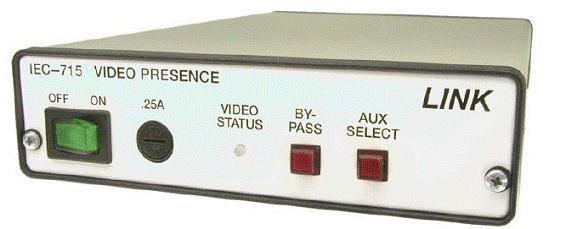

IEC-715

VIDEO PRESENCE DETECTOR
두 개의 Composite 신호를 입력 받아 하나의 Composite 입력에 문제가 생겼을 경우 다른 하나의 Composite 입력으로 자동 스위칭 하여 출력시키는 장비
입력 : 2 x Composite, 아날로그 오디오
출력 : 1 x Composite, 아날로그 오디오

VIDEO INPUT:

Number: Two 75 ohm BNC Connectors

Level: 1 Volt p-p Nominal

Detect Threshold: -14dB

Detection Method: Vertical Sync

Aux. To Primary Cross Talk: > 58dB



VIDEO OUTPUT:

Type: Four(4) Form C Contacts

Connectors: Sub D Cnnector with Screw Terminals

Configuration: Stereo, balanced, single ended

Aux. To Primary Cross Talk: >100dB

Left to Right Channel: >95dB



INDICATORS:

Primary Video: Green

Auxiliary Video: Red



DRY CONTACK SWITCH:

Configuration: SPDT, Form C

Power Rating: 0.5A/120VAC

Terminal Type: Captive Screw Terminals



ENVIRONMENTAL:

Temperature: 0° to 50° ambient

Humidity: 0% to 90% non-condensing



POWER:

Input: 120/240VAC

Power: 0.3 watts



MECHANICAL:

Height: 1 Inch

Width: 5.5 Inches

Depth: 9.25 Inches

Weight: 2 Lbs. 7 Oz.
