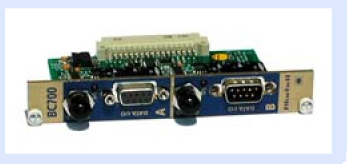

BC700

RS232,RS422,RS485 신호를 입력받아 Optical로 전송하거나 Optical을 입력받아 RS232.RS422,RS485로 출력하는 장비
입/출력 : 2 x Optical
입력 : 2 x RS232,RS422,RS485
출력 : 2 x RS232,RS422,RS485
Dual Bidirectional Multirate Duplex Data Transceiver Card.

General Specs
Depth: 60mm
Width: 20mm 4TE
Height: 100mm (3RU)
Weight: 100g
Operating Temperature: -30 C to +70 C
MTTF @60°C: 69x10E5 hours
Power Supply: 5.8V DC @ 420mA
Signal Detect: LED On for loss of Signal

Options/ Ordering Information
BC700M Multimode Duplex 850/1310nm
BC700S Singlemode Duplex 1310/1550nm



Audio/Data Specs
2 x Duplex RS232, RS422, RS485
Audio/Data Format: Rate Independent
Duplex Data Channels
12kB/s to 12MB/s
Audio/Data Connector: 9-Way D-Conn


Optical Specs
Singlemode or Multimode
Optical Wavelength: 850nm to 1610nm
Optical Performance: Output Power
typical -6dB;
Receiver Sensitivity
-3dB to -30dB typical
Optical Connectors: FC/PC, ST, SC
