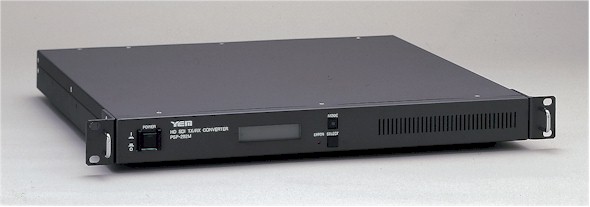

PSP-292M

Parallel/Serial, Serial/Parallel Converter
HDTV Digital Serial과 Digital Parallel신호의 양방향 변환 장비
입력 : HDTV Digital Parallel(D-Sub 50P), HDTV Digital Serial(BNC)
출력 : HDTV Digital Serial(BNC), HDTV Digital Parallel(D-Sub 50P)

PSP-292M

PARALLEL/SERIAL, SERIAL/PARALLEL CONVERTER

   <- Download the catalog(PDF 840kB)

                     Features
                     * Can convert HDTV Digital Serial signals to Digital Parallel signals and vice versa in conformity with
                        SMPTE-292M.
                     * Both of the 8 bit and 10 bit (Panasonic and Philips' specifications) of Digital Parallel inputs and outputs
                        are available.
                     * Automatically responds to the vertical frequency of 59.94 Hz and 60 Hz.
                     * Each 1035i, 1080i, and 720P format is acceptable.
                     * When you select the AUTO mode, the unit responds automatically to the format of the input.



                     Spec

SERIAL/PARALLEL SHIFT
INPUT HDTV Digital Serial
(BNC 1 input)
Conforming to BTA-S004A
OUTPUT HDTV Digital Parallel
(D-SUB 50P)
Y: 8 bit/10 bit ECL Balanced
C: Multiple 8 bit/10 bit ECL Balanced
PARALLEL/SERIAL SHIFT
INPUT HDTV Digital Parallel
(D-SUB 50P)
Y: 8 bit/10 bit ECL Balanced
C: Multiple 8 bit/10 bit ECL Balanced
OUTPUT HDTV Digital Serial
(3 outputs, BNC)
Conforming to BTA-S004A
POWER AC100V - 240V, 47Hz - 63Hz, Less 45W
MEASUREMENT, WEIGHT 424(W) x 400(D) x 44(H)mm,   Approx. 5.5kg

                * Specifications subject to change without prior notice for improvement.
