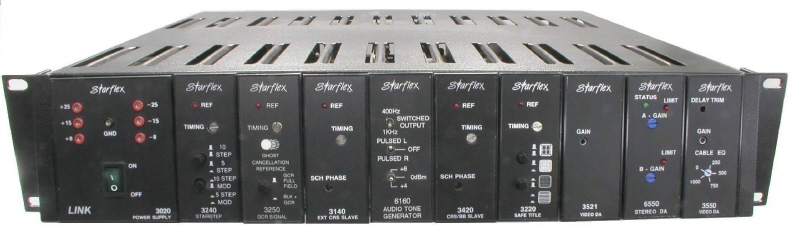

3000 Series
Signal Distribution Systems
Audio Tone Generator, Audio й, Black Burst Generator, Video й 18 ѹ 9 Ͽ ִ Դϴ.



1. 3690 TRANSCODER, RGB TO BETA & MlI

2. 6160 AUDIO TONE GENERATOR

3. 6500 AUDIO DISTRIBUTION AMPLIFIER

4. 6550 AUDIO DA, STEREO 1

5. 3120 MASTER TIMEBASE MODULE FOR CRS

6. 3125 BLACKBURST TO CRS TRANSLATOR

7. 3140 PULSE TIMING, EXTERNAL CRS

8. 3150 BLACKBURST TIMING, EXTERNAL CRS

9. 3210 COLOR BAR BLACKBURST GENERATOR

10. 3220 SAFE TITLE & CROSS HATCH GEN.

11. 3230 MULTIBURST, MULTIPULSE & T PULSE

12. 3240 STAIRSTEP GENERATOR

13. 3250 GHOST CANCELLATION REFERENCE GEN.

14. 3260 NTC-7, MULTIBURST AND SWEEP

15. 3410 PULSE TIMING, INTERNAL CRS

16. 3521 VIDEO DISTRIBUTION AMPLIFIER, 1X8

17. 3550 VIDEO DISTRIBUTION AMPLIFIER, 1 x 8

18. 3680 TRANSCODER, BETA TO RGB



3690 TRANSCODER, RGB TO BETA & MlI

The RGB inputs can be composite or non-composite. external

sync is provided as an input for those signals without sync. The

outputs of BETA and Mll are selectable by internal DIP

switches, no adjustments needed. The 3690 also provides a

4Vp-p sync output. The video bandwidth is 30MHz with a

Very short 20nS propagation delay. The 3690 can be used in any

combination with other StarFlex modules.



6160 AUDIO TONE GENERATOR

The 6160 is the most versatile tone generator on the market.

The unit has two fixed outputs of 400Hz and 1KHz and one

front panel switchable output of 400Hz and 1KHz. The 6160 is

designed as a stereo tone source with independent A&B

channel outputs. Either output can be identified by using the

front panel ID to pulse the selected channel. Output levels of

0dBm, + 4dBm or 8dBm is selectable from the front panel.

Harmonic distortion is less than 0.06% for all outputs.



6500 AUDIO DISTRIBUTION AMPLIFIER, 1 x 6

The 6500 accepts a balanced differential or unbalanced single

ended input and provides six balanced outputs, each with its

own ground. A front panel switch routes the audio to two

internal monitoring busses. The 6500 will drive all outputs into

a dead short without damage, or PS over-load. An LED front

panel fault indicator warns of improper operation. Gain range is 14dB.



6550 AUDIO DA, STEREO 1 x 4, MONO 1 x 8

The 6550 precision audio DA is four outputs stereo or eight

outputs mono. The frequency response is +.05dB, 20Hz to

20KHz. The input is balanced bridging, but can be terminated

into 150 ohms. The output impedance is 66 ohms. Two LED

indicators are located on the front panel to show output limiting.

Gain range is 16dB.



3120 MASTER TIMEBASE MODULE FOR CRS

The primary purpose of the 3120 is to generate CRS and supply it to

the fame buss and output connector. When the front panel

Internal/External switch is in the INT position, the unit performs its

primary function. When the 'EXT' position is selected, CRS must be

provided externally. The 'EXT' CRS selection provides for multiple

frames to be locked together. The heart of the 3120 is a temperature

compensated Voltage controlled crystal oscillator (TCVCXO) whose

TTL compatible output has a nominal center frequency of

14.318180MHz. The oscillator will remain stable with no need for

adjustment for at least ten years. Only one 3120 can be used in the

same frame.



3125 BLACKBURST TO CRS TRANSLATOR

The StarFlex 3125 is designed to translate an RS-170A blackburst

signal to CRS. The CRS output is fed to the frame motherboard and

to the output connector on the rear panel. An internal jumper

removes CRS from the frame motherboard. The 3125 translates

blackburst into CRS to supply any Link Electronics CRS based timing

and test generator modules. When used in conjunction with any CRS

module, your are able to advance or delay your system by the

amount of timing specified by the timing module.



3140 PULSE TIMING, EXTERNAL CRS

The 3140 receives external CRS through the rear panel looping BNC

connectors. All drive pulses are provided on the rear panel

connectors. Burst Flag is standard, although Color Field ID can be

substituted for BF. The 3140 also supplies CRS to the frame

motherboard for distributions to other modules requiring CRS for

system lock. Horizontal timing and Subcarrier phase are controlled

from the front panel. An on-board oscillator ensures output continuity

in the event of a loss of CRS.

3150 BLACKBURST TIMING, EXTERNAL CRS

The 3150 receives external CRS through the rear panel looping BNC

connectors. Two blackburst signals are provided on the rear panel

BNC connectors. The 3150 also supplies CRS to the frame

motherboard for distributions to other modules requiring CRS for

system fork. Horizontal timing and Subcarrier phase are controlled

from the front panel. An on-board oscillator ensures output continuity

in the event of a loss of CRS.



3210 COLOR BAR BLACKBURST GENERATOR

The 3210 receives CRS internally through the motherboard or

externally through looping BNC connectors. The 3210 outputs two

signals of FULL FIELD, SPLIT-FIELD, SMPTE BARS or

BLACKBURST. A key feature is front panel horizontal system timing

of the signals. Chroma phase is fixed to RS-170A specifications. A

front panel LED shows the presence of CRS for system lock

3220 SAFE TITLE & CROSS HATCH GEN.



The 3220 receives CRS internally through the motherboard or

externally through looping BNC connectors. The 3220 outputs two

signals of CROSS HATCH PATTERN, HORIZONTAL BARS, DOTS,

or SAFE TITLE/SAFE ACTION. A key feature is a horizontal system

timing control for the convenience of accurately timing the signal into

the system. A front panel LED shows the presence of CRS for

system lock.



3230 MULTIBURST, MULTIPULSE & T PULSE

The 3230 receives CRS internally through the motherboard or

externally through looping BNC connectors. The 3230 outputs two

signals of MULTIBURST 100% AND 50%, MULTI PULSE, T/2T and

12.5T. A key feature is front panel horizontal system timing of the

signals. Chroma phase is fixed to RS-170A specifications. A front

panel LED shows the presence of CRS for system lock.



3240 STAIRSTEP GENERATOR

The 3240 receives CRS internally through the

motherboard or externally through looping BNC

connectors. The 3240 outputs two signals of 10 STEP

NON-MODULATED, 5 STEP NON-MODULATED, 10

STEP MODULATED or 5 STEP MODULATED. A key

feature is front panel horizontal system timing of the

signals. Chroma phase is fixed to RS-170A

specifications. A front panel LED shows the presence of

CRS for system lock.



3250 GHOST CANCELLATION REFERENCE GEN.

The 3250 generates the GCR signal to be placed on line

19 of a video signal. A switch on the front panel selects

full field or line 19 GCR signal. The 3250 is locked to the

internal CRS signal or it can be locked to an external

CRS. The 3125 will allow the GCR signal to be locked to

and external black burst signal. Up to eight 3250's may

be operated in the same frame.



3260 NTC-7, MULTIBURST AND SWEEP

The 3260 receives CRS internally through the

motherboard or externally through looping BNC

connectors. The 3260 outputs two signals of NTC-7

COMP-1, NTC-7 COMP-2, MULTIBURST 100%, or

4.2MHz SWEEP. A key feature is front panel horizontal

system timing of the signals. Chroma phase is fixed to

RS-170A specifications. A front panel LED shows the

presence of CRS for system lock.



3410 PULSE TIMING, INTERNAL CRS

The 3410 receives internal CRS through the 3000 frame

motherboard. All drive pulses are provided on the rear

panel connectors. Burst Flag is standard, although Color

Field ID can be substituted for BF. Up to eight timing

modules can be used in the same frame for the

convenience of timing large systems. H. timing and SC

phase are controlled from the front panel. An onboard

oscillator ensures output continuity in the event of a loss

of CRS.



3521 VIDEO DISTRIBUTION AMPLIFIER, 1X8

The 3521 is an excellent video DA for all distribution

requirements. The bandwidth is 30MHz, without

equalization and clamp. Delay propagation trim of 6 is a

front panel control. Gain range is front panel controlled

over a range of 3dB. The rear cell has looping input and

provides eight outputs. The rear cell concept allows a

mixture of any combination of 3000 and 6000 series

modules. The system can grow as large as your

imagination allows. Hundreds of timing modules can be

used with ease.



3550 VIDEO DISTRIBUTION AMPLIFIER, 1 x 8

The 3550 video DA is a precision high-linearity

distribution amplifier that distributes eight outputs. The

3550 has a video bandwidth of 30MHz. Equalization is

front panel controlled and is a standard feature along with

feedback clamp. Delay propagation trim of 6 degrees is

a front panel control. Gain range is 3dB. A number of

video and audio distribution amplifiers may be used in the

same frame for system flexibility.



3680 TRANSCODER, BETA TO RGB

The 3680 offers virtually transparent conversion of BETA

format video (Y, R-Y, B-Y) to RGB. Sync is present on all

three RGB outputs. The input signals should be standard

BETA amplitude. Differential Gain is <1%, and

Differential Phase is <2. Propagation delay is <15 nS.

The 3010 rear cell is supplied with the unit as all StarFlex

rear cells are supplied with the appropriate module.
