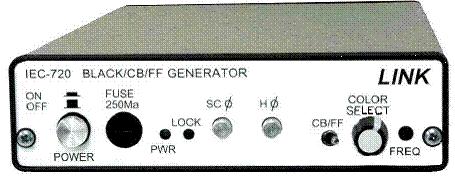

IEC-720

MASTER BLACKBURST and COLOR BAR GENERATOR
블랙 버스트 와 칼라바를 출력시키는 장비
출력 : NTSC, RS-170A

OUTPUTS:

All Outputs:

             Standard: NTSC, RS-170A

             Levels:

                           Sync: -40 IRE (0.286Vpp)

                           Pedestal: 7.5 IRE (0.054Vpp)

                           Burst: 40 IRE (0.286Vpp)

             Connectors: BNC

             Impedance: 75Ω ±1%

             Timebase Stability: ±0.0005%, 0 to 70° C at 27MHz

             Tilt and Overshoot: <0.5%

             Sync Rise Time: 140nS ±20ns

             Pedestal Rise Time: 140nS ±20ns

             Burst Envelope: 9 Cycles

             S/N Ratio: >55dB

             Residual Subcarrier: <2mV

Blackburst:

             Number: 2

Color Bar / Flat Color Field, Front Panel Select:

             Number: 2

             Color Bar:

                           Amplitude: 100%

                           Saturation: 100%

                           Type: EIA

             Flat Color Field

                           Number of colors 16, user selectable

AUDIO:

Number: 1

Configuration: Balanced

Level: 0dBu ±1%

Frequency: 1 KHz

Connector: Screw terminal

Impedance: 66Ω ±5%

THD: <0.1%

S/N Ratio: >85dB



FRONT PANEL CONTROLS:

27MHz oscillator frequency adjustment, subcarrier phase adjustment (360°), horizontal phase adjustment (±4.5μS), color bar / color field mode select switch, and gen-lock indicator LED.



INTERNAL CONTROLS:

Output video and audio level adjustments



POWER REQUIREMENTS:

Voltage: 120VAC±10%

Current: 85mA

Power: Approx. 10.2 Watts



MECHANICAL:

Height: 1 Inch

Width: 5.5 Inches

Depth: 9.25 Inches

Weight: 2 lbs. 8oz.
